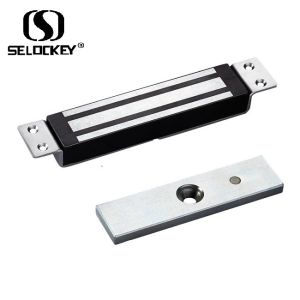

600LBS 280KG Holding Force Magnetic Door Lock

Name: 600LBS 280KG Holding Force Magnetic Door Lock
Brand: Selockey
Price: 1 USD

Quality 600LBS 280KG Holding Force Magnetic Door Lock for sale

MOQ : 500

Place of Origin : China

Brand Name : Selockey

Size : 231.6Lx41.6Wx24.5H(mm)

Armature Plate Dimension : 180Lx38Wx11H(mm)

Holding Force : 280kg(600Lbs)

Material : Zinc alloy

Weight : 2.1kg

Working temperature : -20℃ - 60℃

Contact Now

Magnetic lock for sliding door,600LBS(280KG) holding force

signal output magnetic lock for single glass door, wooden door, fireproof door, metal door. Mortise mount and easy installation are reserved . Accessories are available for all kinds of doors.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.

Product Parameter	Parameter Description
Size	231.6Lx41.6Wx24.5H(mm)
Armature Plate Dimension	180Lx38Wx11H(mm)
Holding Force	280kg(600Lbs)
Input Voltage	12 or 24VDC
Current	12V/500mA or 24V/250mA
Suitable	Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp	≤+20℃
Operating Temp	-10~+55℃(14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	2.1kg

600LBS 280KG Holding Force Magnetic Door Lock

Product Tags:

280KG Magnetic Door Lock

600LBS Magnetic Door Lock

280KG Frameless Glass Door Locks

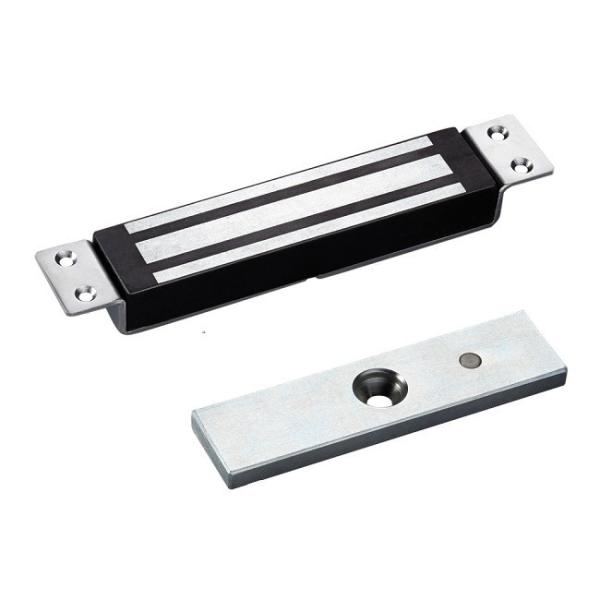

600LBS 280KG Holding Force Magnetic Door Lock Images
